Square

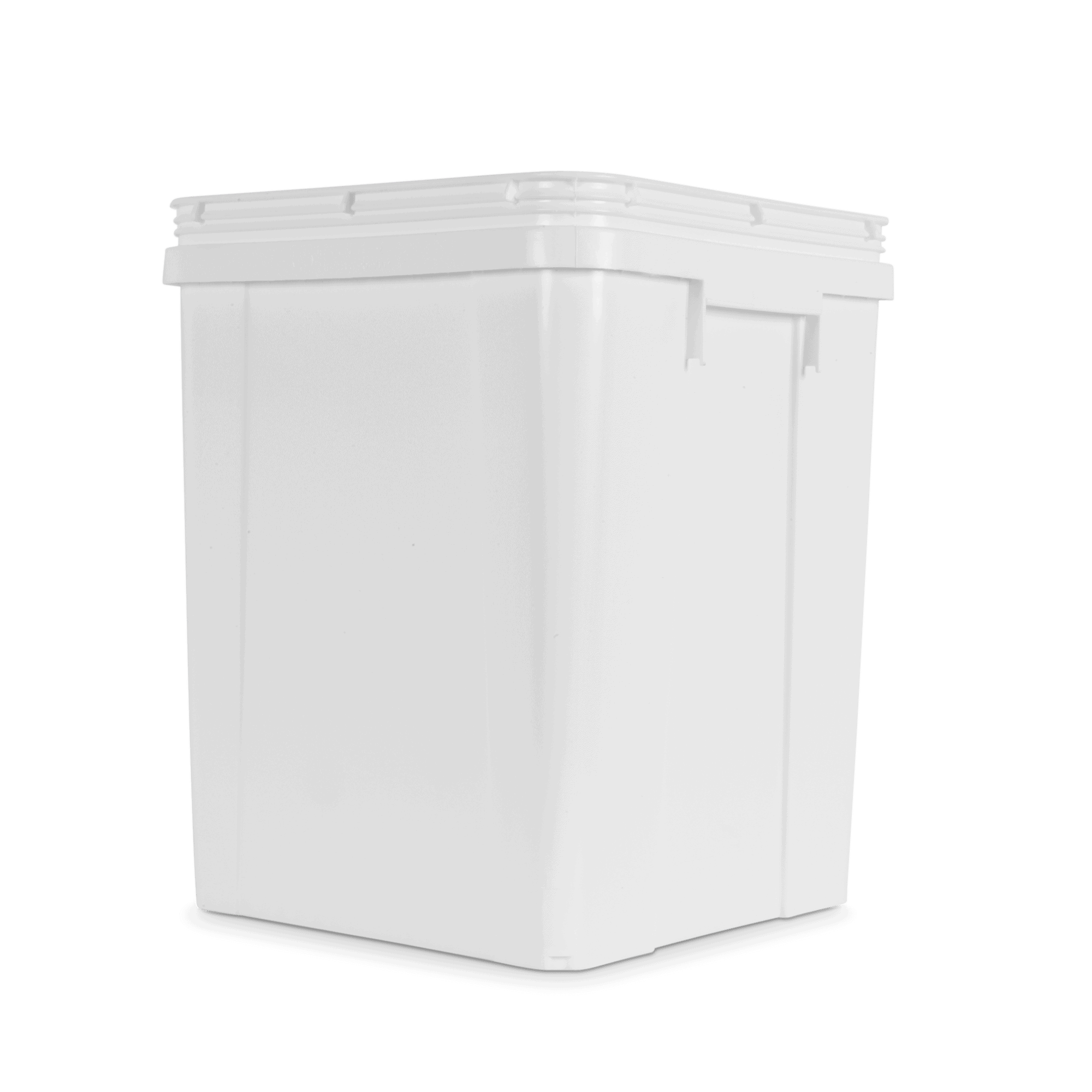

52L UN SquarePack

UN code: 4H2/Y55/SSquare

Technical specifications

Product code
655
Shape
Square
Dimensions (mm, L x W x H)
378 x 378 x 470
Volume (L) under lid
51.8
Closure type
Press lid, optional gasket
Raw material(s)
HDPE base, PP lid
Tamper evidence
Yes, integral tear-off band
Handles
Two integral side handles
UN code
4H2/Y55/S
Technical data sheet
Brimful volume
52.6 L
Nominal volume
51.88 L
Empty weight (container)
2.06 kg
UN marking (full)
4H2/Y55/S/**/IL/DB/2019002
Units per PE bag
8
Units per pallet
144
Pallet size
1140 x 1140 mm
Nested stack height, 1 / 2 / 3 containers
470 / 574.5 / 679 mm

As printed on the data sheet. ** stands for the year of manufacture.

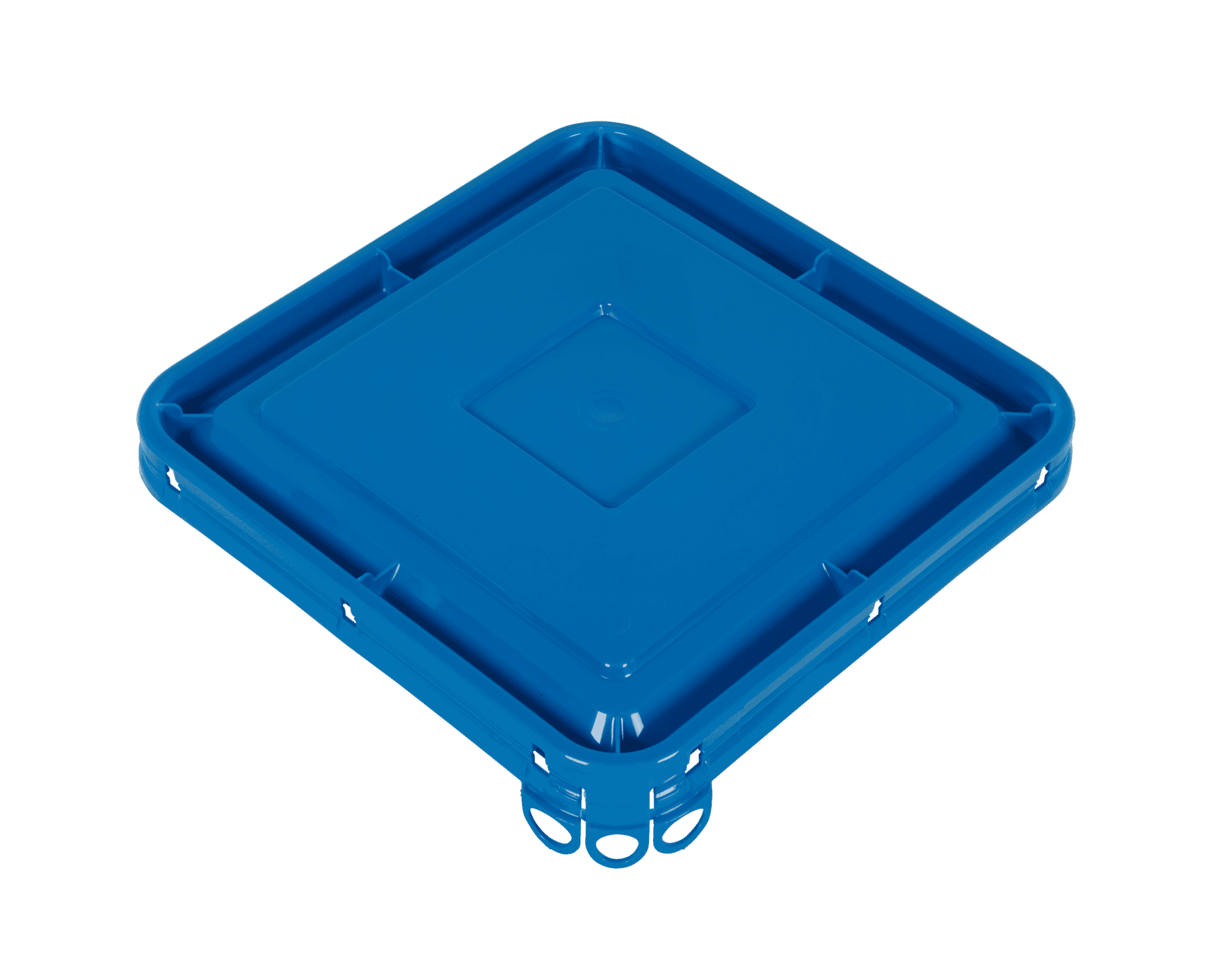

Compatible lids

Lid 650

Length x width
378 x 378 mm
Height
35 mm
Weight
0.46 kg
Units per carton
20
Units per pallet
600

Lid 652

Length x width
378 x 378 mm
Height
40 mm
Weight
0.5 kg
Units per PE bag
17
Units per pallet
612

Request the full data sheet (PDF)Ref. 68-02-655-4

Request a quote

Key benefits

  • Open-top filling

    Open-top for easy and complete filling & emptying.

    51.8 L

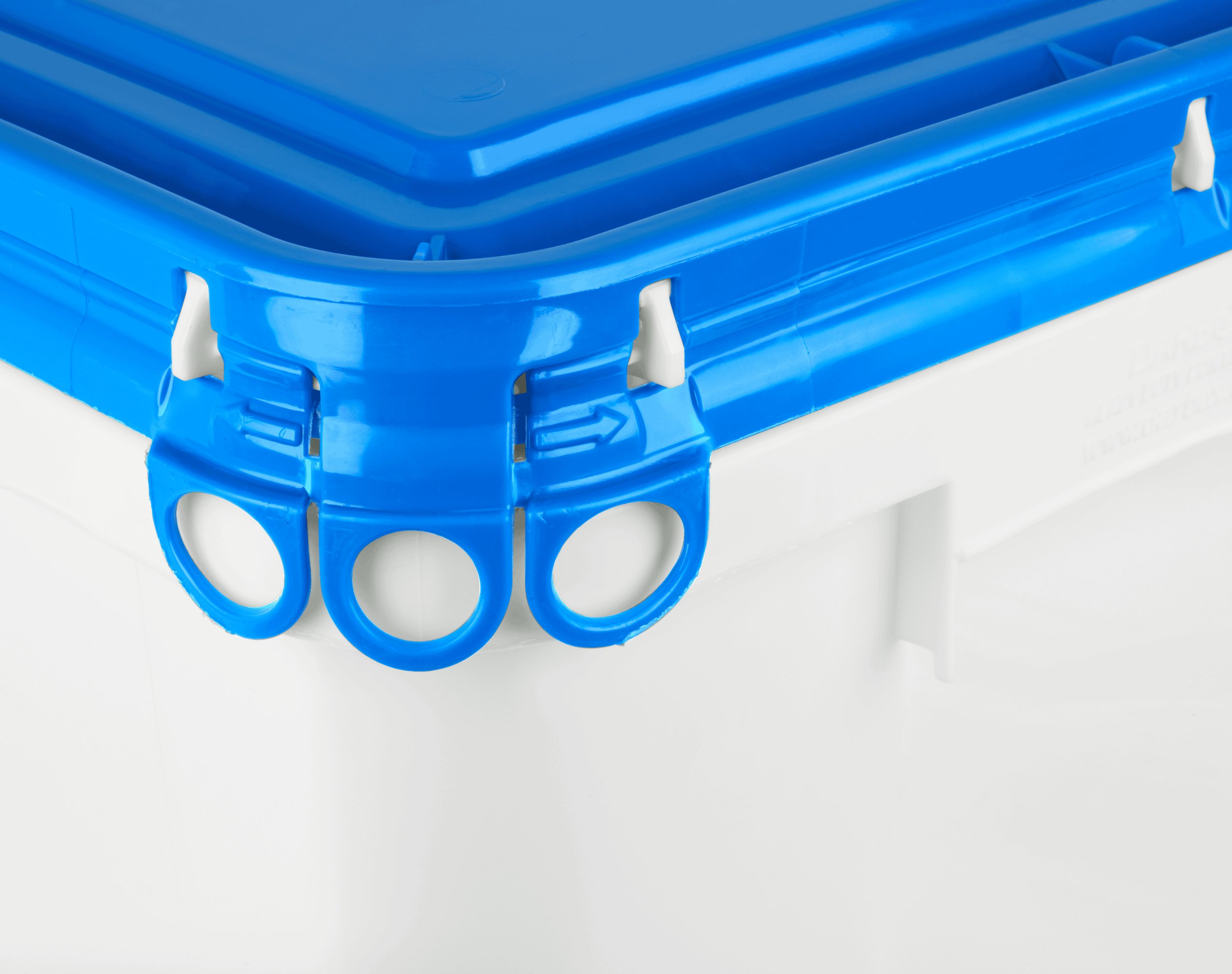

  • Secure close

    Secure closure with integral tamper-evident tear-off band.

    Press lid, optional gasket

  • Stable stacking

    Strong & Stable Stacking.

    378 × 378 mm

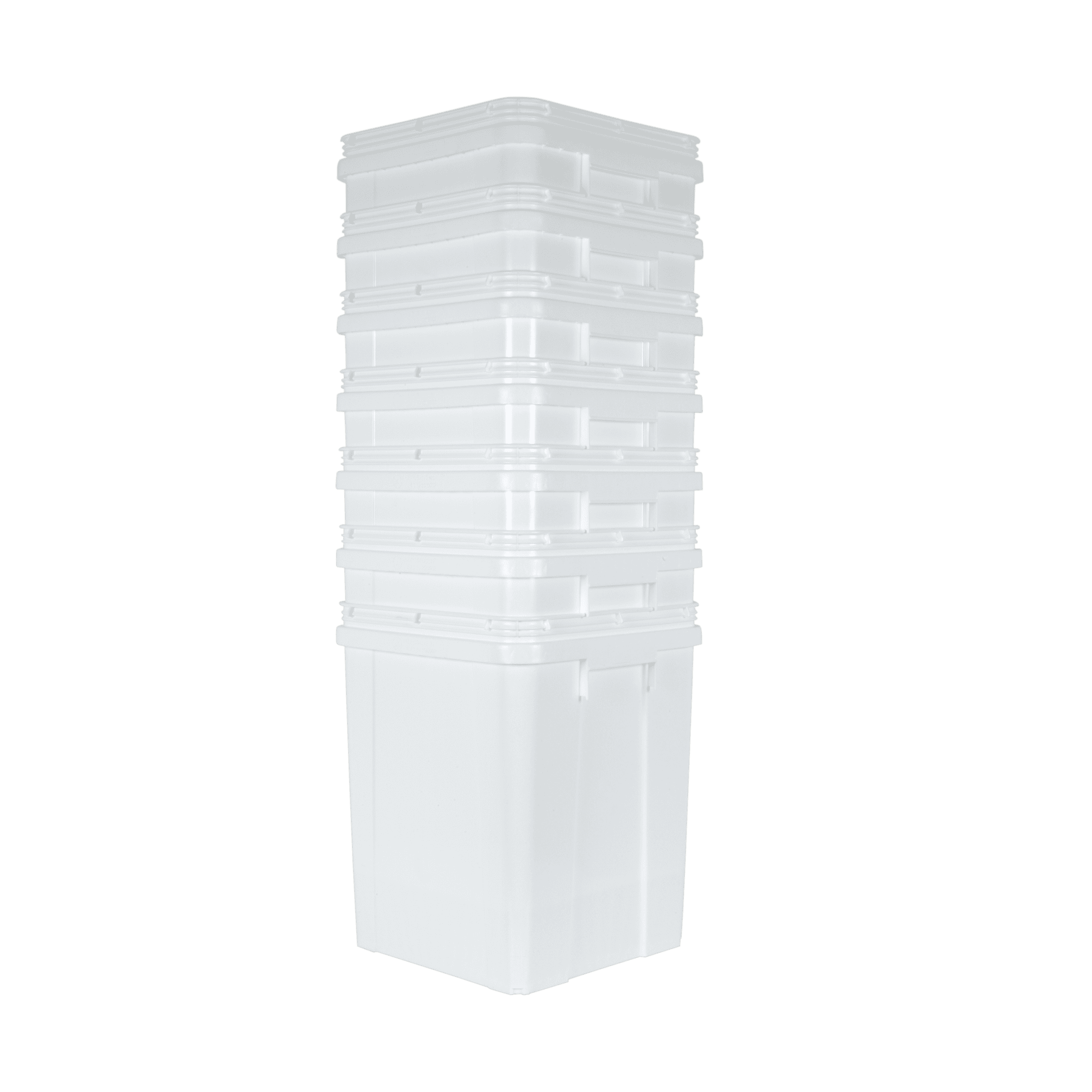

  • Empty nesting

    Conical tapered shape for compact nesting one inside the other when empty, saves space!

    Square

Interested in the 52L UN SquarePack?

Talk with our team about capacities, colors, UN certification, and logistics for your material.

Request a quote
