Rectangular
114L UN QuadPack
UN code: 4H2/Y50/SRectangular, conical (tapered)
Technical specifications
- Product code
- 646
- Shape
- Rectangular, conical (tapered)
- Dimensions (mm, L x W x H)
- 598 x 397 x 635
- Volume (L) under lid
- 112.1
- Closure type
- Press lid with TE tear-off band
- Raw material(s)
- HDPE base and lid
- Tamper evidence
- Yes, integral tear-off band
- Handles
- Integral side grips
- UN code
- 4H2/Y50/S
Technical data sheet
- Brimful volume
- 112.9 L
- Nominal volume
- 112.1 L
- Empty weight (container)
- 3.95 kg
- UN marking (full)
- 4H2/Y50/S/**/IL/DB/102
- Units per PE bag
- 5
- Units per pallet
- 50
- Pallet size
- 1200 x 1000 mm
- Nested stack height, 1 / 2 / 3 containers
- 634 / 785 / 936 mm
As printed on the data sheet. ** stands for the year of manufacture.

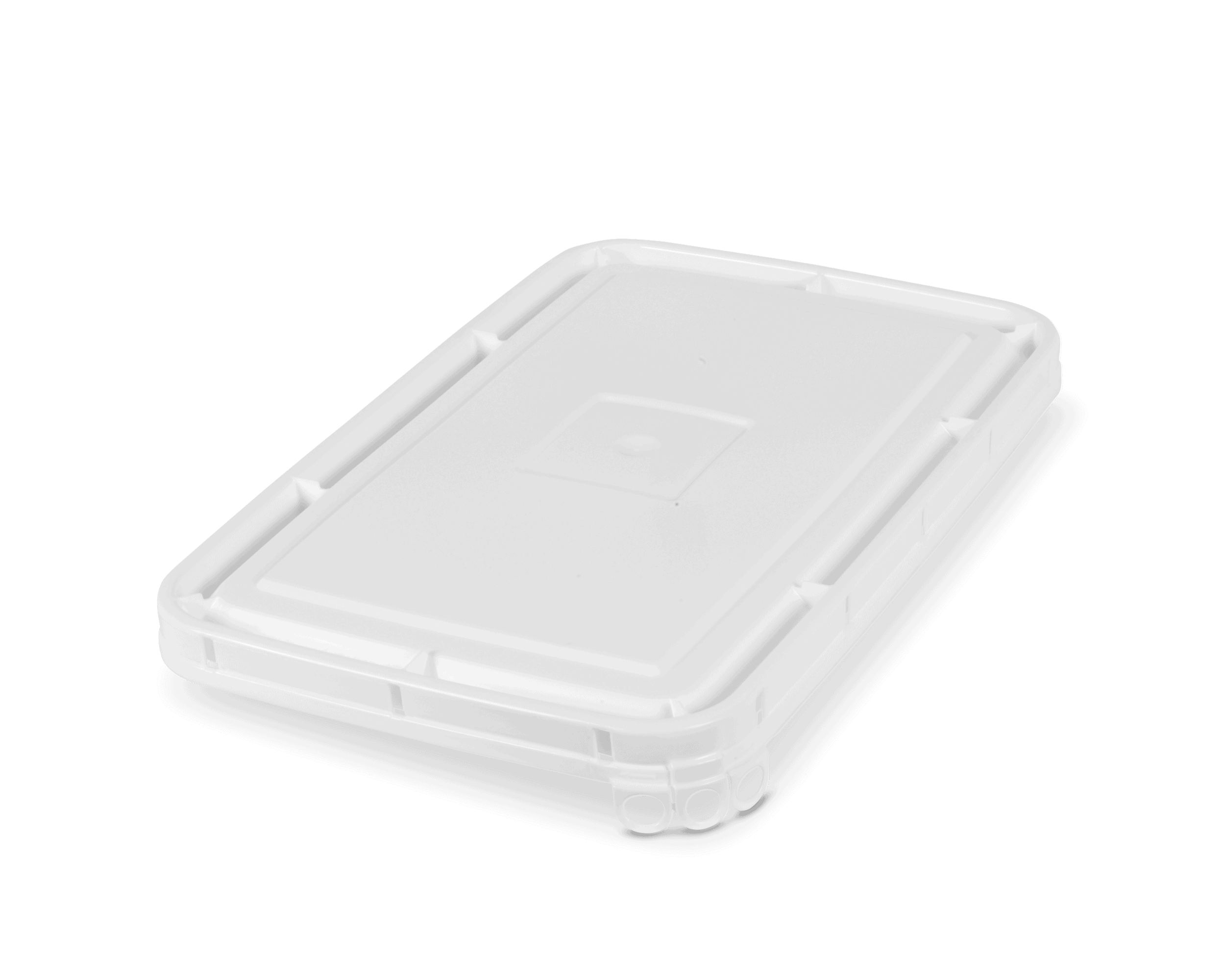

Compatible lids
Lid 646
- Length x width
- 592 x 396 mm
- Height
- 37.4 mm
- Weight
- 0.861 kg
- Units per carton
- 12
- Units per pallet
- 180
Request the full data sheet (PDF)Ref. 68-02-646-4
Key benefits

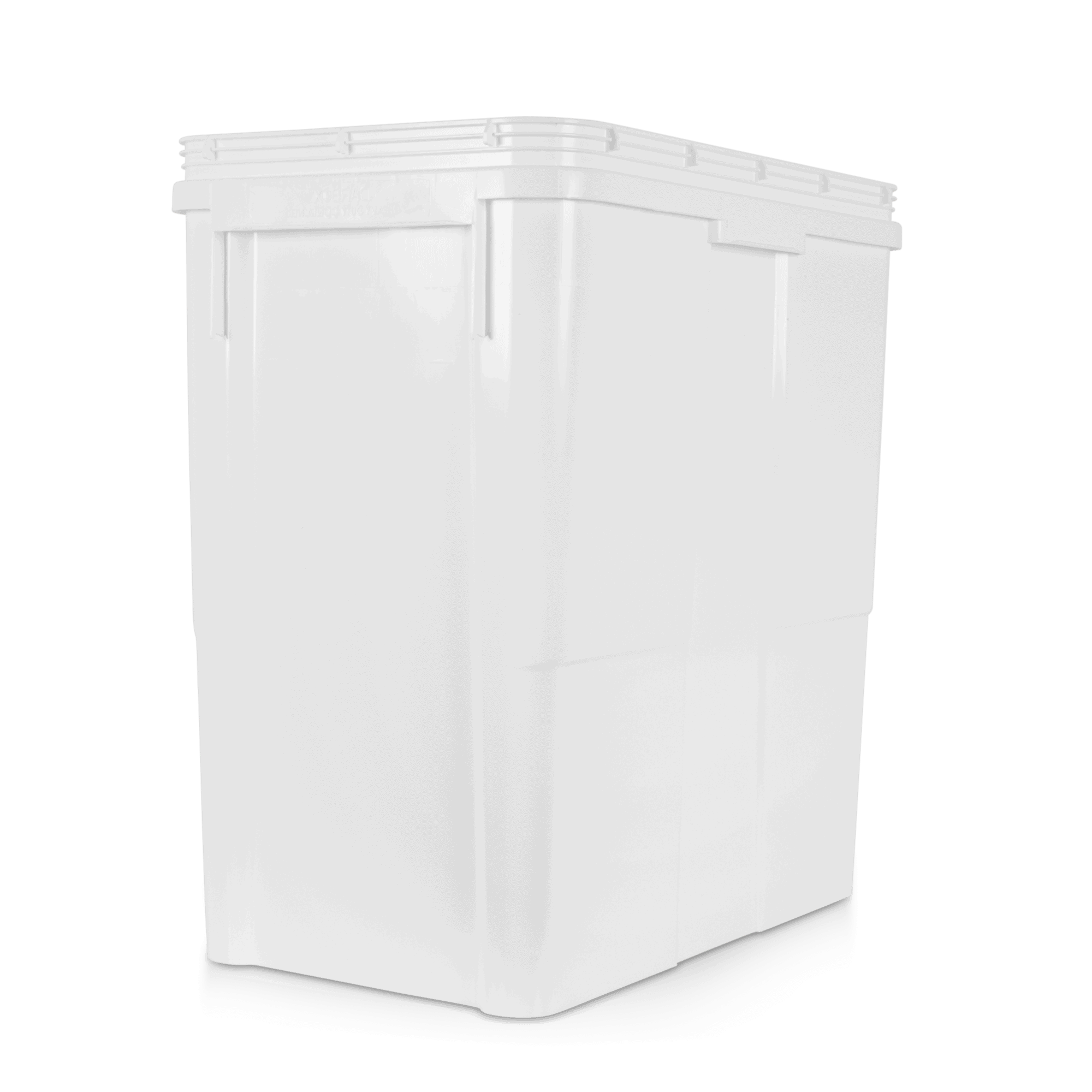

Open-top filling
Open-top for easy and complete filling & emptying.
112.1 L

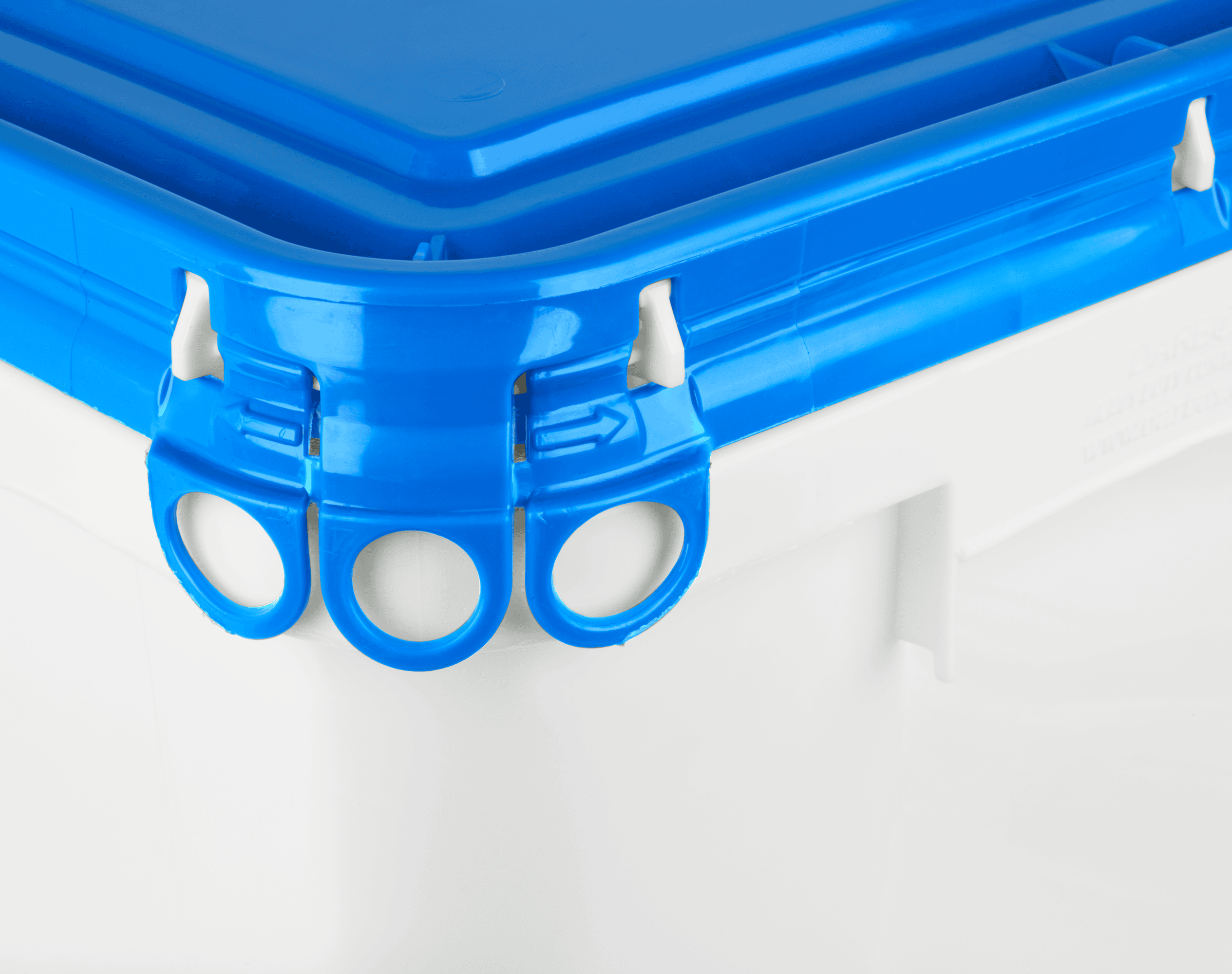

Secure close
Secure closure with integral tamper-evident tear-off band.
Press lid with TE tear-off band
Stable stacking
Optimize space, Maximize efficiency.
598 × 397 mm

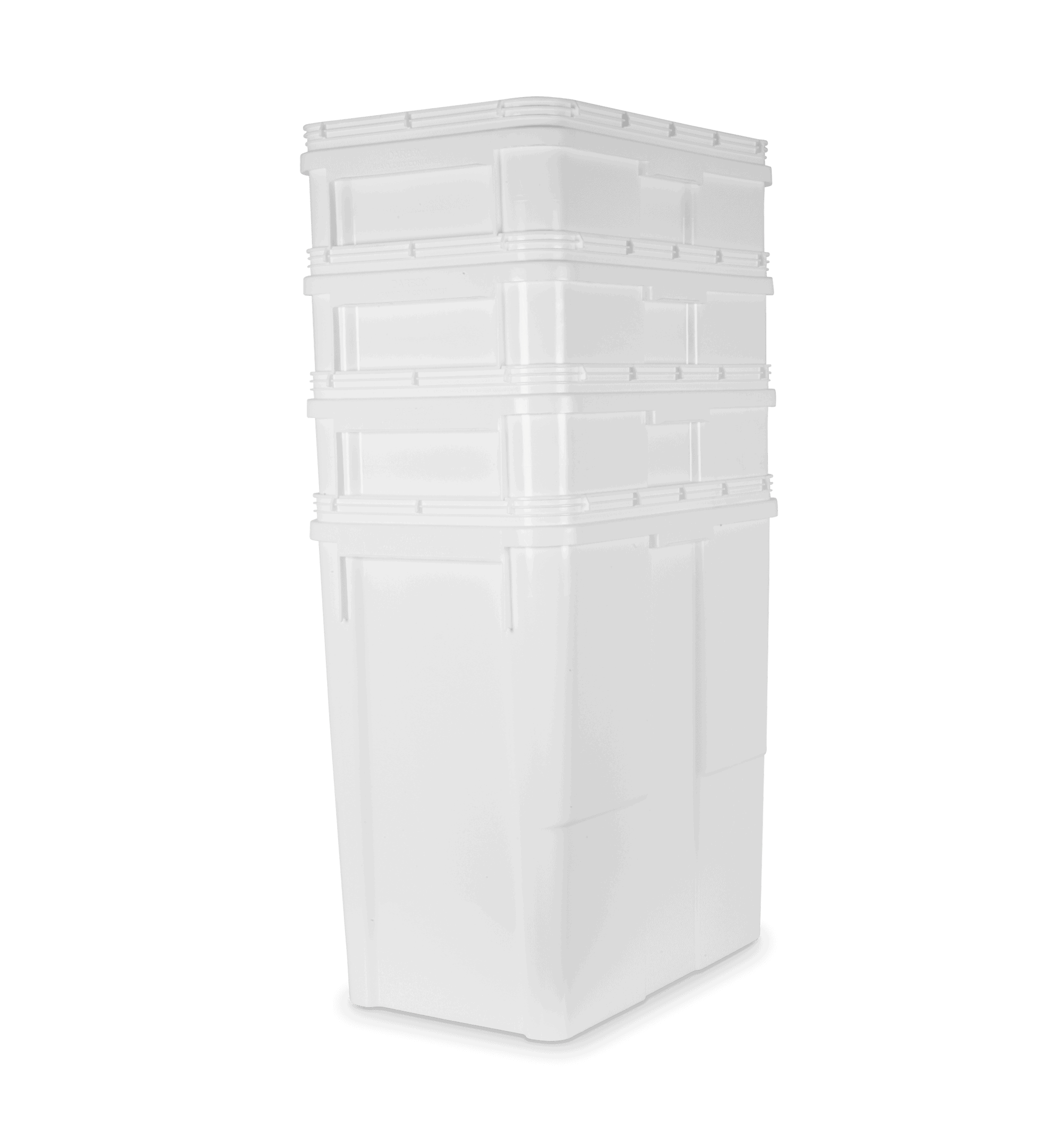

Empty nesting
Conical tapered shape for compact nesting when empty, one inside the other.
Rectangular, conical (tapered)
